Help with adding new device

Support General
1

Hi there, I would like to replace my 411 / rocket dish with a LHG 5 dish as a test as I am getting incredibly bad ccq, can you please add the following MAC to the Rhea 5ghz sector, if it is worse I will revert to the current setup. The new MAC is E4 8D 8C 61 65 8D

WiND Node: 1295
PC IP:172.18.16.29
RB IP:172.18.16.30
RB has ctwug/ctwug login?: yes

See my previous log to see what i am getting

2

Bad CCQ can be freq related or hardware. So good luck and hope it is only freq issue. :slight_smile:

1 Like
3

Hi Wolf, Jenny.co.za has started transmitting on the same freq

4

Then a new freq must be put in place from the HS side. Do freq usage test on both your and HS sides and see what is available as clear or less ocupied on both side.

5

I did it from my side but have no idea how to do that from rhea

6

this is last post Advice about link

7

I have added the Mac address for you, please let me know if it looks better. If not then well have to look for a new frequency.

8

Cool thanx Ogon, I will let you know what the difference is.

9

They causing problems in our area as well.

10

I wonder is someone can help me … i have installed the LHG and getting way better signal but TT / DC are not connecting ( I most likely did something in the config but dunno what

The LHG is currently connected to the wug, -59 … yay … ccq still crap though ( maby cause I am not downloading at this time
I have setup a ctwug read acc ctwug / ctwug, pls let me know if must setup an admin acc
You can mail to gilowey@mweb.co.za

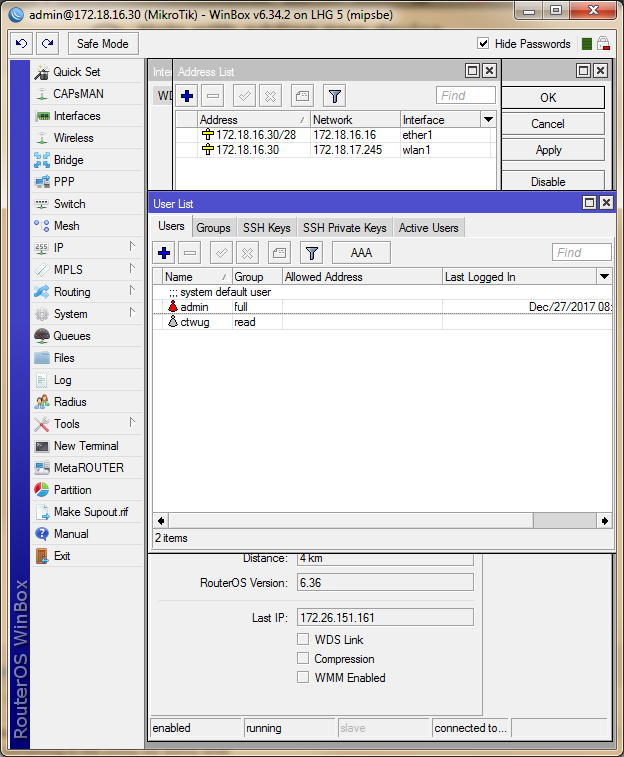

image.png624×757 94.3 KB

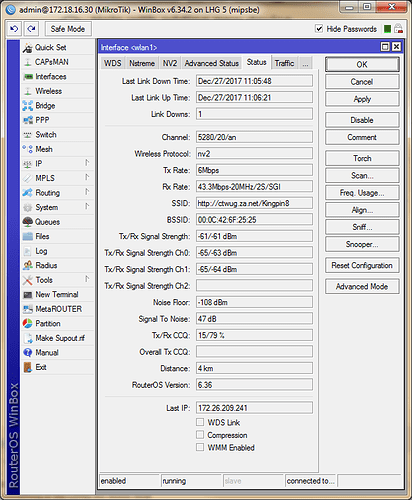

image.png624×757 89.4 KB

11

i tried to view your settings via the read account could not get in maybe mac server is not enabled on your rb or there is still default firewall rules on the rb. Did u add the route under ip then routes?

12

here is the mac E4 8D 8C 61 65 8D

13

this is what is there but I dont recall adding it

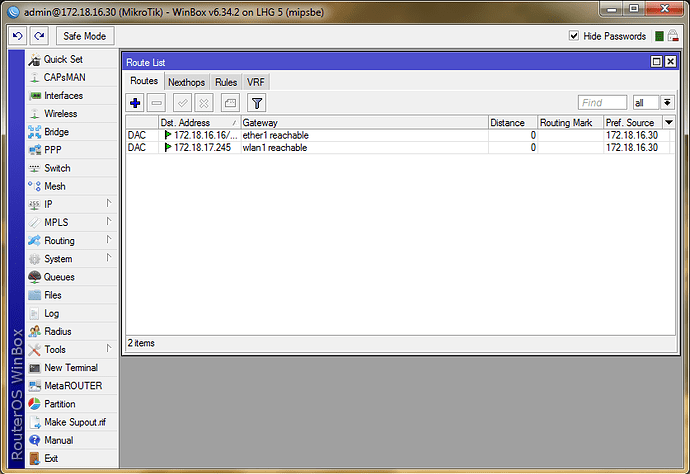

image.png837×576 99.1 KB

14

u are missing the 172.16.0.0/12 route

in the terminal window u can paste this line and press enter it will add the missing route

/ip route add dst-address=172.16.0.0/12 gateway=172.16.17.245 comment=“Route to WUG”

EDIT: lol made a typo should be

/ip route add dst-address=172.16.0.0/12 gateway=172.18.17.245 comment=“Route to WUG”

15

it sais unreachable …
